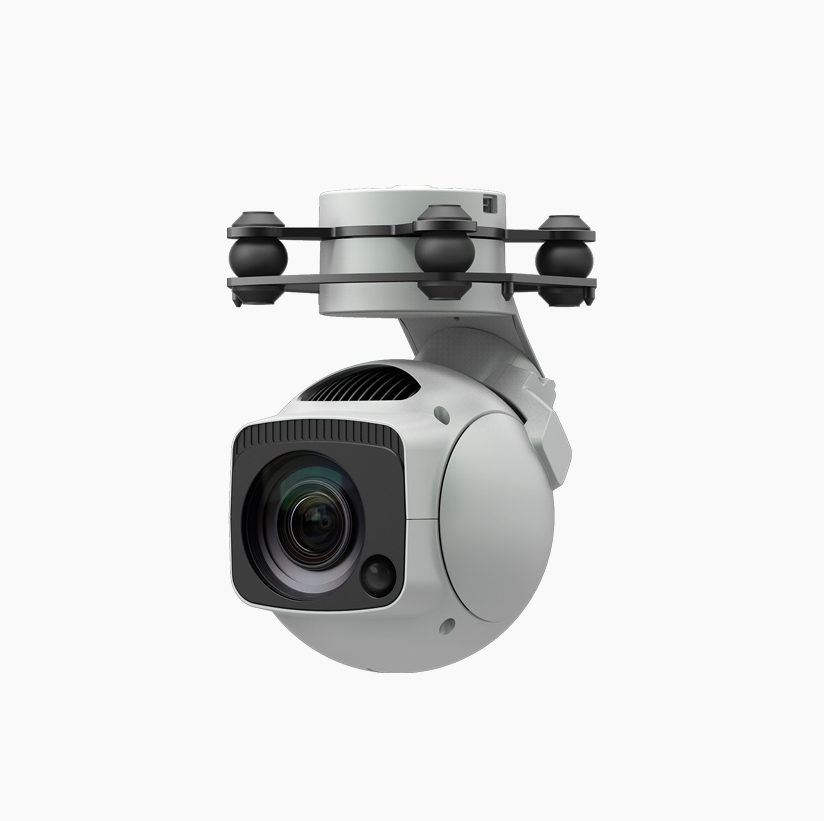

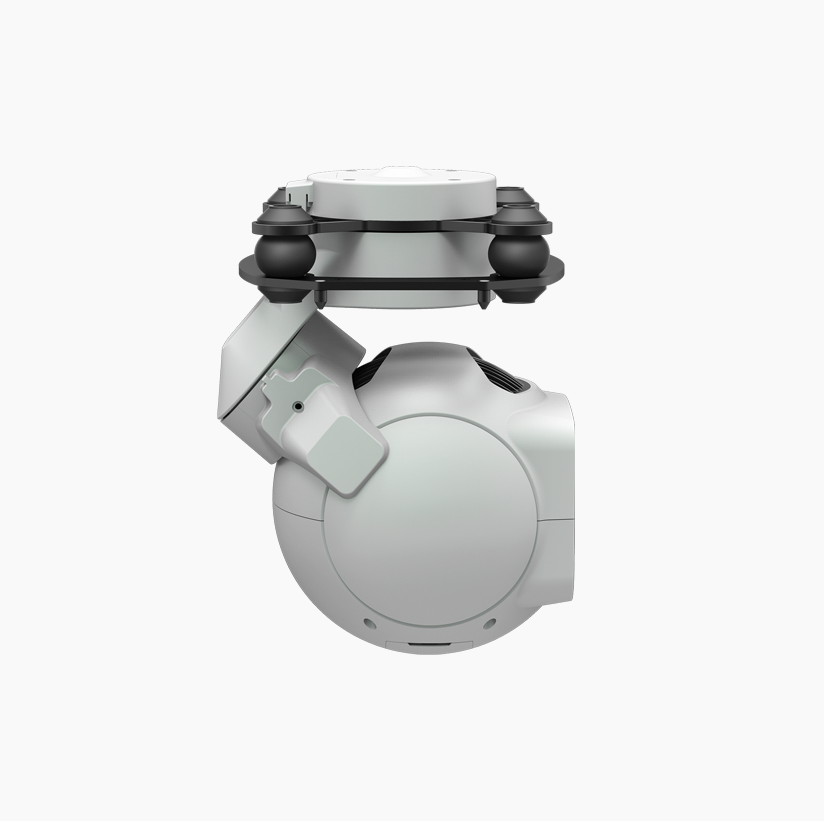

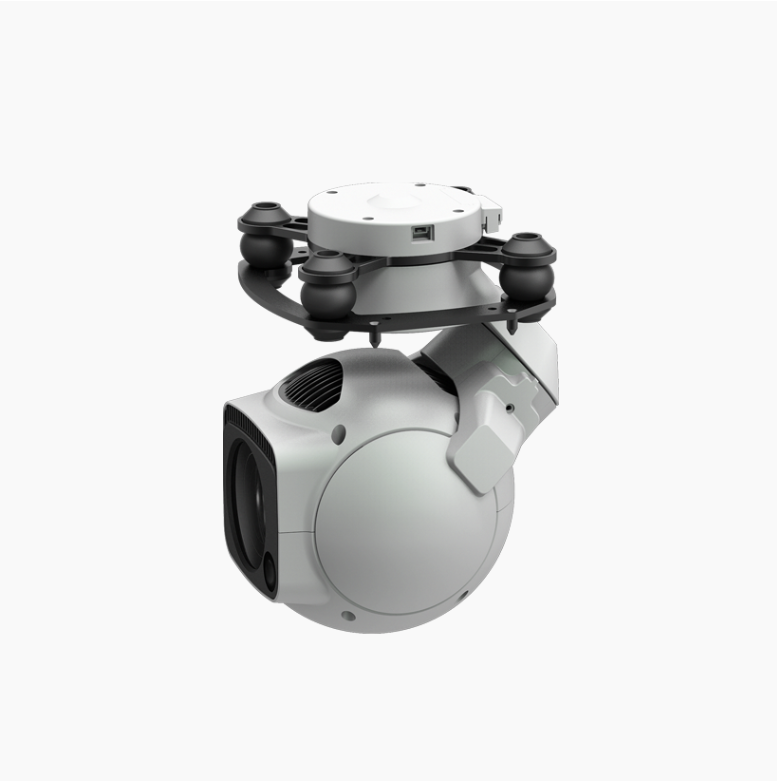

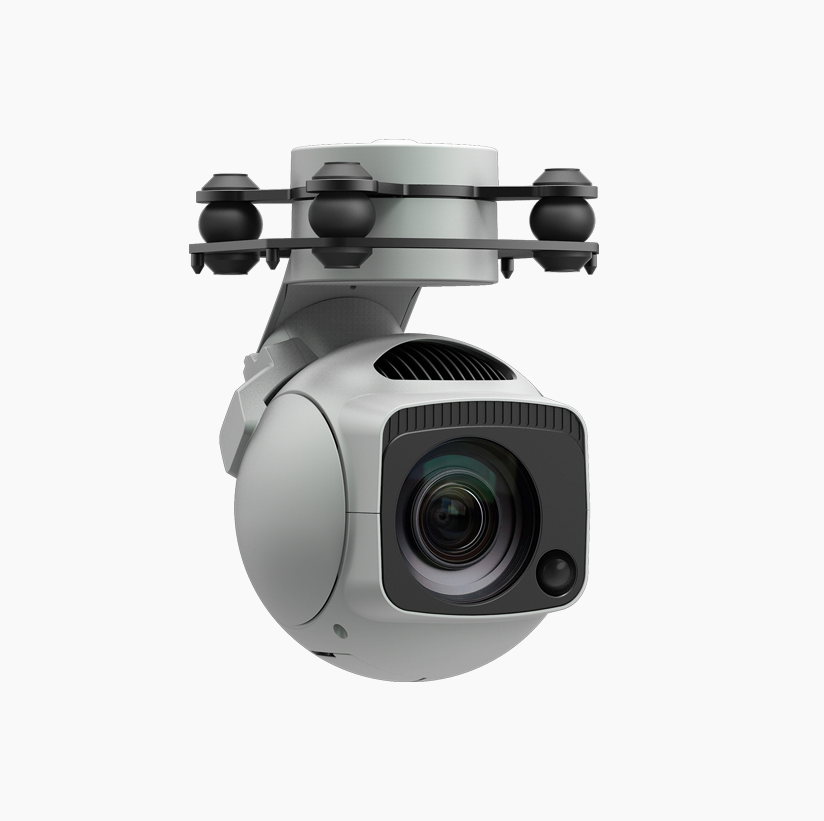

XF Vision D-80 Pro 40x 4K Spherical Pod
XF Vision D-80 Pro 40x 4K Spherical Pod
SKU:XF-D80pro
Backorder
Couldn't load pickup availability
The D-80Pro is equipped with a high-accuracy 3-axis nonorthogonal gimbal and an 8.29M pixels 40x zoom camera. Users can quickly switch to a highly magnified zoom camera view after recognizing a target in a wide camera view. Thanks to the laser lighting module, the D-80Pro can provide a clear image even in completely dark environments.
The D-80Pro has target tracking functions. The pod can constantly track the target selected on screen.
The D-80Pro can be mounted toollessly onto multiple carriers, whether downward or upward. With the GCU and the Dragonfly software, the user can watch the image from the camera and control the pod in real time on a computer.
Characteristics
· Carries an 8.29M pixels 40x hybrid zoom camera, which provides a video resolution of 4K@30fps and an image resolution of 3840x2160.
· Laser lighting module ensures the camera getting a clear image even in complete darkness.
· Features auto target tracking, which can constantly track the target selected on screen.
· Low-profile spherical shape and 3-axis nonorthogonal mechanical stabilized structure minimize the gyration radius and the wind resistance of the pod. The D-80Pro is able to spin continually around its yaw axis.
· With the GCU, the D-80Pro supports network, UART and S.BUS control. The GCU supports both private protocol and MAVLink protocol.
· Thanks to the Dual-IMU complementary algorithms with IMU temperature control and carrier AHRS fusion, the D-80Pro provides a stabilization accuracy at ±0.01°.
· Can be mounted onto multiple carriers, whether downward or upward.
· With the GCU and the Dragonfly software, the user can watch the image and control the pod without protocol ducking.
· With the customized QGC software, all the functions of the pod can be achieved in conjunction with an open-source autopilot.
· Screen supports overlaying OSD information such as latitude, longitude, and altitude. Image supports shooting point coordinate EXIF save.
· Supports ONVIF protocol.
· 14~53 VDC wide voltage input.
