XF Vision D-90 Ai 4K & Thermal Multi-Sensor Spherical Pod
XF Vision D-90 Ai 4K & Thermal Multi-Sensor Spherical Pod
SKU:XF-D90ai
Backorder
Couldn't load pickup availability

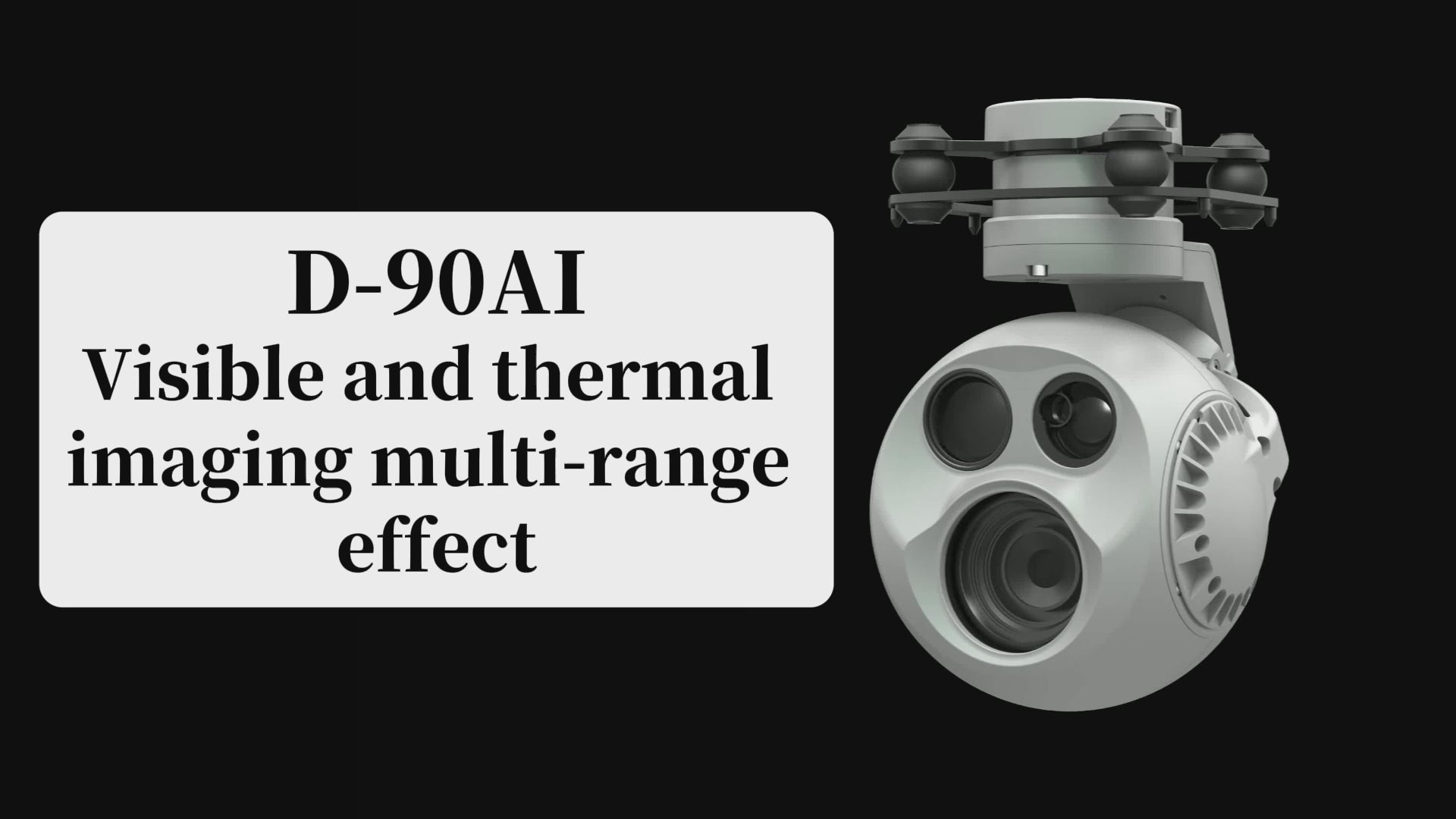

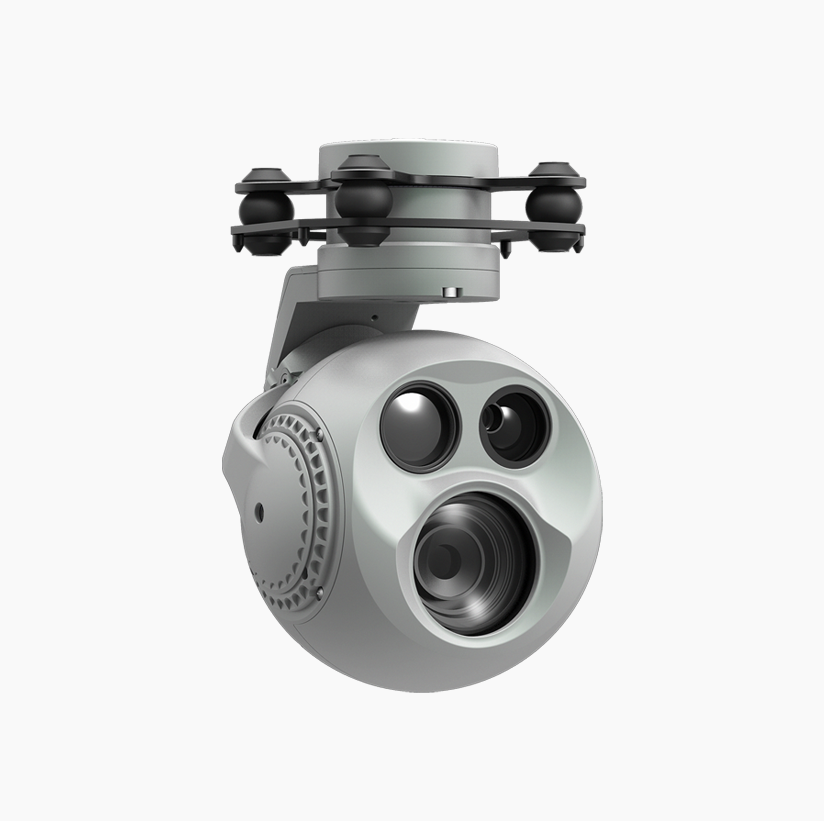

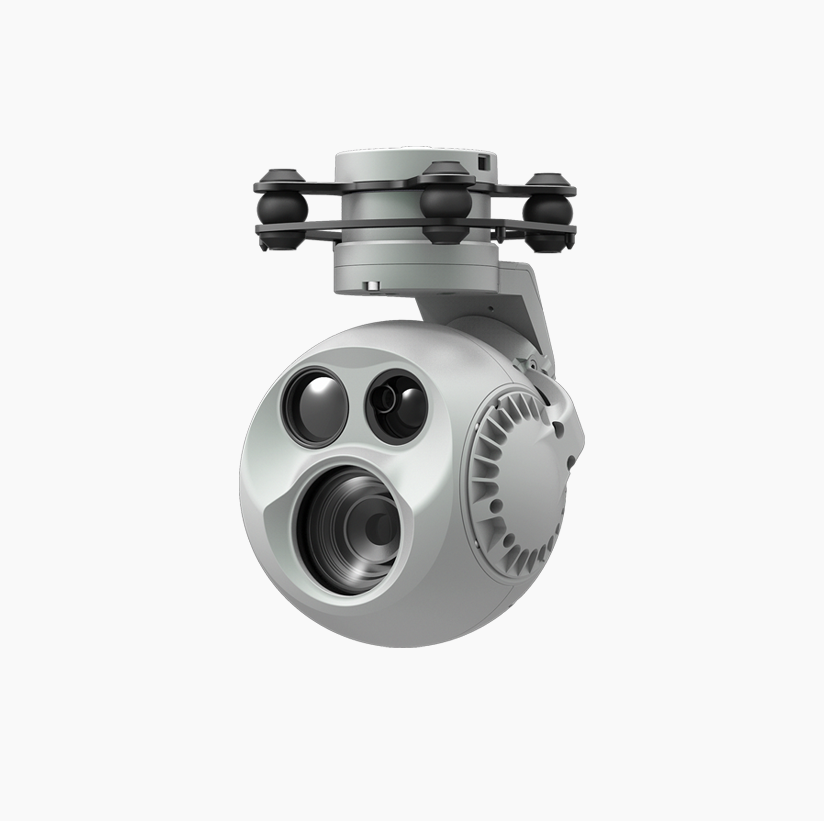

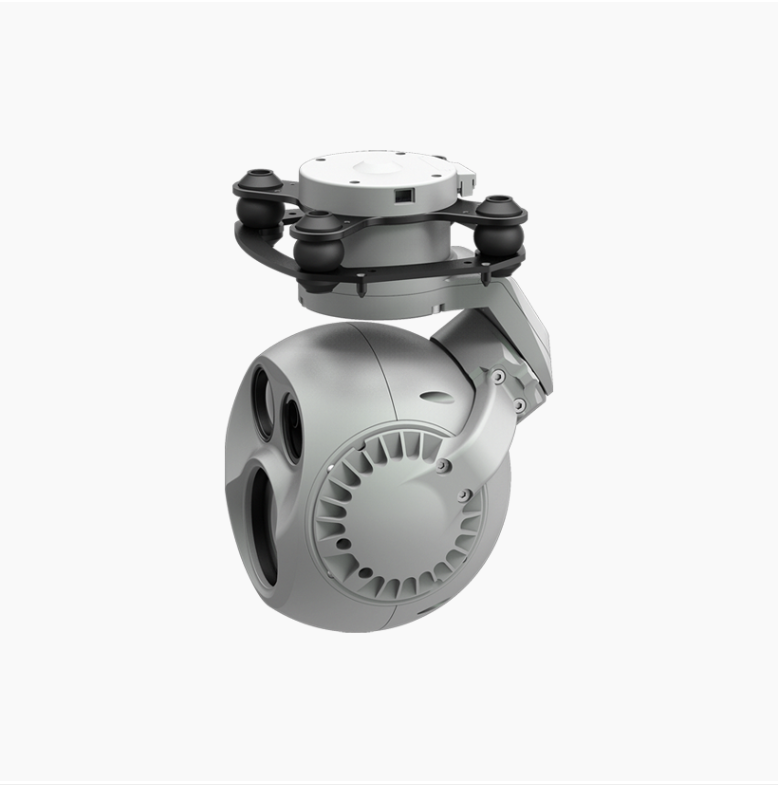

The D-90AI equips with a high accuracy 3-axis nonorthogonal gimbal, a 30x zoom camera and a long-wave thermal camera, which can provide visual and infrared images simultaneously. Thanks to the laser range finder, the D-90AI can provide the location of a target and the distance to it that improves working efficiency.
The D-90AI have AI multi-object detection and tracking function. The gimble camera can intelligently identify the persons and vehicles in the image, and constantly track one of them.
The D-90AI can be mounted tool-lessly onto multiple carriers, whether downward or upward. With the GCU and the Dragonfly software, user can watch the image from the camera and control the pod real-timely on a computer.
Characteristics
· Features AI multi-object detection and tracking, which can constantly track one of the persons and vehicles intelligently identified in the image.
· Carries a 30x hybrid zoom camera, a thermal camera and a laser range finder.
· Low-profile spherical shape and 3-axis nonorthogonal mechanical stabilized structure, minimize the gyration radius and the wind resistance of the pod.
The D-90AI is able to spin continually around its yaw axis.
· With the GCU, the D-90AI supports network, UART and S.BUS control. The GCU supports both private protocol and MAVLink protocol.
· Thanks to the Dual-IMU complementary algorithms with IMU temperature control and carrier AHRS fusion, the D-90AI provides a stabilization accuracy at ±0.01°.
· Can be mounted onto multiple carriers, whether downward or upward.
· With the GCU and the Dragonfly software, user can watch the image and control the podwithout protocol ducking.
· With the customized QGC software, all the functions of the pod can be achieved in conjunction with an open source autopilot.
· Screen supports overlaying OSD information such as latitude, longitude and altitude. Image supports shooting point coordinate EXIF save. Video stream supports SEI stacking.
· 14~53 VDC wide voltage input.
